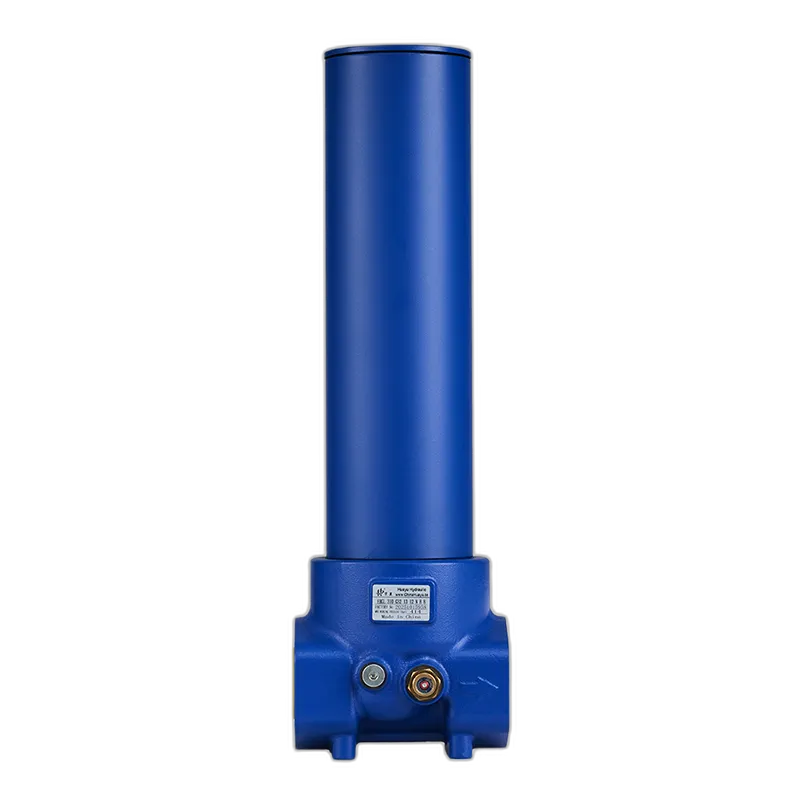

EHGL Series

High pressure filter

Connection type and size:

BSP Threaded connection: G1¼" G1½" G2"

SAE Flange connection: 1¼" 1½" 2"

Maximum flow rate up to 600 l/min

Maximum working pressure: 414 bar

Bypass valve opening pressure: 4.5 bar

Transmitter opening pressure: 3.5 bar

Temperature range: -29℃ to 120℃

Head: Cast iron

Filter bowl: Carbon steel

Seals: NBR nitrile rubber (standard)

Or FKM fluororubber (customizable)

Filter element material: Fiberglass

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
