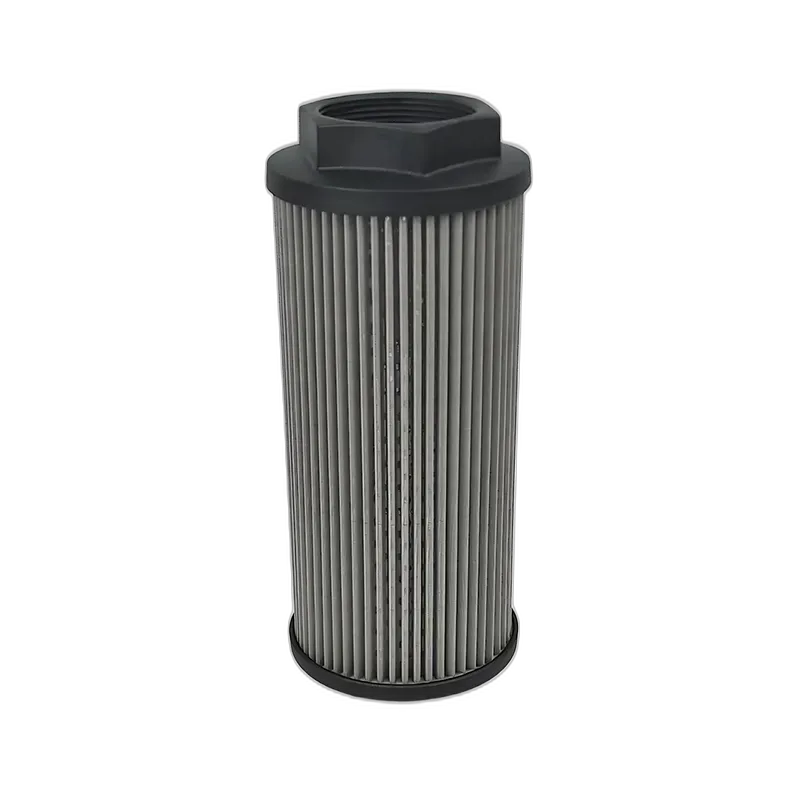

PHXA Series

Suction filter

PHXA is a range of suction strainers for protection of thedownstreampump against the coarse contamination. They are placed below the oillevel directly connected to the suction line of the pump.

Connection type and size:Threaded connection: 3/8" 1/2" 3/4" 1" 1- 1/2" 2" 2- 1/2" 3"  Maximum flow rate up to 1000 l/min

Bypass valve opening pressure: 0.3 bar

Temperature range: -25℃ to 120℃

Head: Cast aluminium

Bottom: Carbon steel

Filter element material: Stainless steel wire mesh

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
